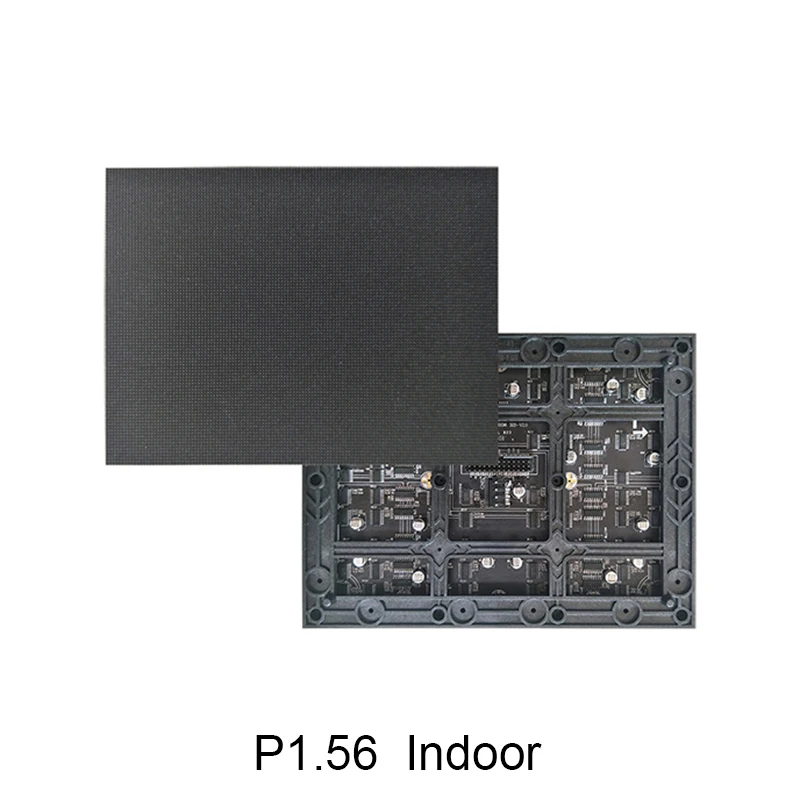

P1.56 indoor LED Module

Name: P1.56 indoor LED Module
Brand: TERUIDI LED Display Screen
Price: 1.00 USD
Availability: InStock

$1.00

Qty

Add to Cart

Inquiry This Only

Add to Wish List

Cabinet Size 400*300 mm

Model	IC	Lamp beads	Pixels	Size	Pitch	Pixels/square meter	Scanning	Brightness
P1.25 60S	6363	1010	160*120 dots	200*150 mm	1.25 mm	640,000 dots/㎡	1/60 Scan	600 CD/㎡
P1.56 48S	6363	1212	128*96 dots	200*150 mm	1.56 mm	409,600 dots/㎡	1/48 Scan	600 CD/㎡
P1.667 45S	6363	1212	120*90 dots	200*150 mm	1.667 mm	360,000 dots/㎡	1/45 Scan	600 CD/㎡

Cabinet Size 600*337.5 mm

Model	IC	Lamp beads	Pixels	Size	Pitch	Pixels/square meter	Scanning	Brightness
P1.25 45S	6363	1010	240*135 dots	300*168.75 mm	1.25 mm	640,000 dots/㎡	1/45 Scan	600 CD/㎡
P1.56 54S	6363	1212	192*108 dots	300*168.75 mm	1.56 mm	409,600 dots/㎡	1/54 Scan	600 CD/㎡

Box specifications 480*480 mm

Model	IC	Lamp beads	Pixels	Size	Pitch	Pixels/square meter	Scanning	Brightness
P1.875 32S	6124	1515	128*128 dots	240*240 mm	1.875 mm	284,444 dots/㎡	1/32 Scan	600 CD/㎡
P1.875 64S	6363	1515	128*128 dots	240*240 mm	1.875 mm	284,444 dots/㎡	1/64 Scan	600 CD/㎡
P2.5 45S	6363	2121	96*96 dots	240*240 mm	2.5 mm	160,000 dots/㎡	1/45 Scan	600 CD/㎡

Cabinet Size 640*480 mm

Model	IC	Lamp beads	Pixels	Size	Pitch	Pixels/square meter	Scanning	Brightness
P1.25 64S	6363	1010	256*128 dots	320*160 mm	1.25 mm	640,000 dots/㎡	1/64 Scan	600 CD/㎡
P1.53 52S	6363	1212	208*104 dots	320*160 mm	1.53 mm	422,500 dots/㎡	1/52 Scan	600 CD/㎡
P1.667 48S	6363	1212	192*96 dots	320*160 mm	1.667 mm	360,000 dots/㎡	1/48 Scan	600 CD/㎡
P1.86 43S	6363/16380	1515	172*86 dots	320*160 mm	1.86 mm	288,906 dots/㎡	1/43 Scan	600 CD/㎡

Rental screen series

Model	IC	Lamp beads	Pixels	Size	Pitch	Pixels/square meter	Scanning	Brightness	Refresh rate
P2.604 32S	6124	1515	96*96 dots	250*250 mm	2.604 mm	147,456 dots/㎡	1/32 Scan	4500 CD/㎡	≥1920 HZ
P2.976 28S	6124	2121	84*84 dots	250*250 mm	2.976 mm	112,896 dots/㎡	1/28 Scan	4500-5000 CD/㎡	≥1920 HZ
P3.91 16S	2037	2121	64*64 dots	250*250 mm	3.91 mm	65,536 dots/㎡	1/16 Scan	4000-4500 CD/㎡	≥1920 HZ
P4.81 13S	2037	2121	52*52 dots	250*250 mm	4.81 mm	43,264 dots/㎡	1/13 Scan	?	?
P2.976 21S	6124	1415	84*84 dots	250*250 mm	2.976 mm	112,896 dots/㎡	1/21 Scan	4500-5000 CD/㎡	≥1920 HZ
P3.91 16S	2037	1921	64*64 dots	250*250 mm	3.91 mm	65,536 dots/㎡	1/16 Scan	4000-4500 CD/㎡	≥1920 HZ
P4.81 13S	2037	1921	52*52 dots	250*250 mm	4.81 mm	43,264 dots/㎡	1/13 Scan	?	?

Soft module series

Model	IC	Lamp beads	Pixels	Size	Pitch	Pixels/square meter	Scanning	Brightness
P1.56 48S	6363	1212	128*96 dots	200*150 mm	1.56 mm	409,600 dots/㎡	1/48 Scan	600 CD/㎡
P1.86 43S	16380/6363	1212	172*86 dots	320*160 mm	1.86 mm	288,906 dots/㎡	1/43 Scan	600 CD/㎡
P1.875 32S	6124	1515	128*64 dots	240*120 mm	1.875 mm	284,444 dots/㎡	1/32 Scan	600 CD/㎡
P2 40S	16380/6363	1515	160*80 dots	320*160 mm	2 mm	250,000 dots/㎡	1/40 Scan	600 CD/㎡
P2 32S	6124	1515	128*64 dots	256*128 mm	2 mm	250,000 dots/㎡	1/32 Scan	600 CD/㎡
P2 30S	6124	1515	120*60 dots	240*120 mm	2 mm	250,000 dots/㎡	1/30 Scan	600 CD/㎡
P2.5 32S	6124	2121	128*64 dots	320*160 mm	2.5 mm	160,000 dots/㎡	1/32 Scan	600 CD/㎡
P2.5 24S	6124	2121	96*48 dots	240*120 mm	2.5 mm	160,000 dots/㎡	1/24 Scan	600 CD/㎡
P3 20S	2037	2121	80*40 dots	240*120 mm	3 mm	111,111 dots/㎡	1/20 Scan	600 CD/㎡
P3 32S	2037	2121	64*64 dots	192*192 mm	3 mm	111,111 dots/㎡	1/32 Scan	600 CD/㎡
P3.076 26S	2037	2121	104*52 dots	320*160 mm	3.076 mm	105,625 dots/㎡	1/26 Scan	600 CD/㎡
P4 16S	2037/5020	2121	64*32 dots	256*128 mm	4 mm	62,500 dots/㎡	1/16 Scan	600 CD/㎡
P5 16S	2037/5020	2121	64*32 dots	320*160 mm	5 mm	40,000 dots/㎡	1/16 Scan	600 CD/㎡

Outdoor series

Model	IC	Lamp beads	Pixels	Size	Pitch	Pixels/square meter	Scanning	Brightness	Refresh rate
P2.5 16S	6124	1415	64*64 dots	160*160 mm	2.5 mm	160,000 dots/㎡	1/16 Scan	5000-5500 CD/㎡	≥1920 HZ
P3 16S	2037	1921	64*64 dots	192*192 mm	3 mm	111,111 dots/㎡	1/16 Scan	5500-6000 CD/㎡	≥1920 HZ
P3 16S	2037	1415	64*64 dots	192*192 mm	3 mm	111,111 dots/㎡	1/16 Scan	5000-5500 CD/㎡	≥1920 HZ
P4 8S	2037	1921	64*32 dots	256*128 mm	4 mm	62,500 dots/㎡	1/8 Scan	5500-6000 CD/㎡	≥1920 HZ
P5 8S	2037	2727-6-	32*32 dots	160*160 mm	5 mm	40,000 dots/㎡	1/8 Scan	5500-6000 CD/㎡	≥1920 HZ
P6 8S	2037	2727-6-	32*32 dots	192*192 mm	6 mm	27,777 dots/㎡	1/8 Scan	5000-5500 CD/㎡	≥1920 HZ
P6 8S	2037	3535	32*32 dots	192*192 mm	6 mm	27,777 dots/㎡	1/8 Scan	5300-5800 CD/㎡	≥1920 HZ
P8 4S	5020/2037	3535	32*16 dots	256*128 mm	8 mm	15,625 dots/㎡	1/4 Scan	5500-6000 CD/㎡	≥1920 HZ

For more different parameter requirements and the latest product updates, please contact us, thank you.
